FRP Sheet

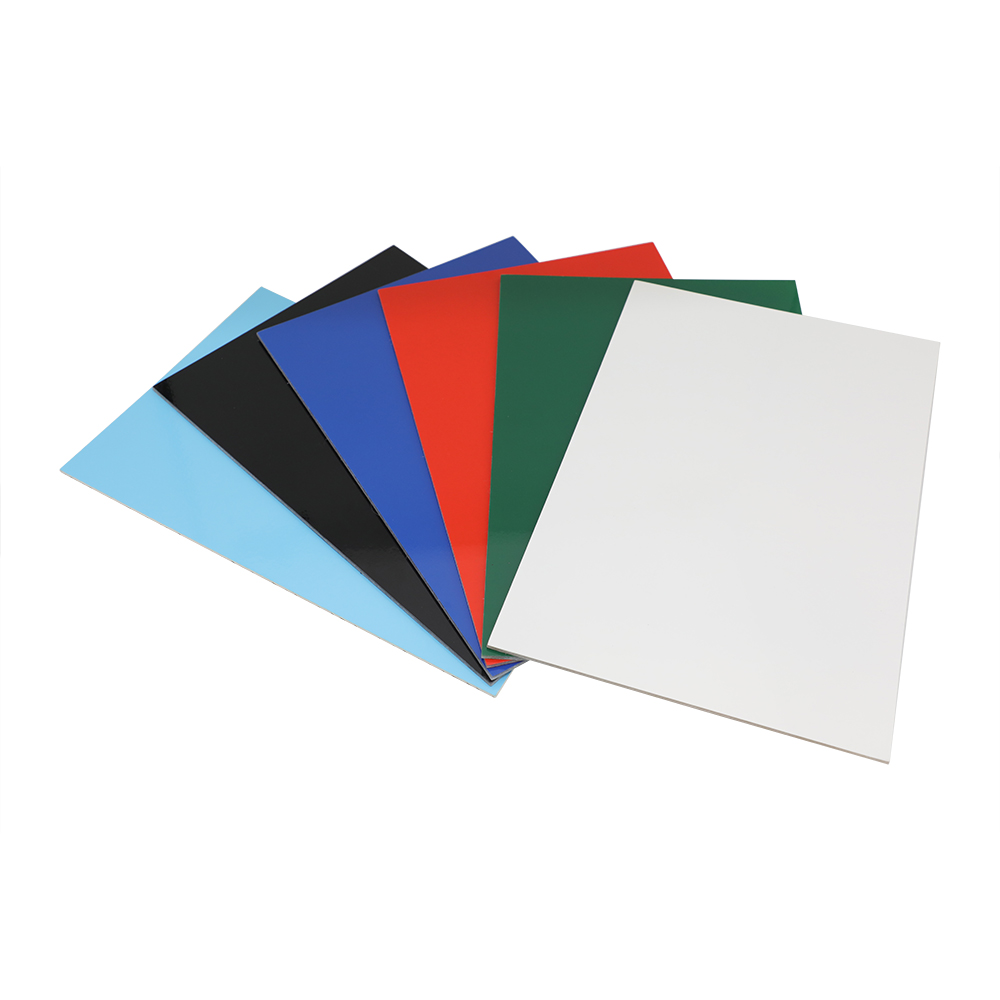

FRP sheet is made of high strength fiberglass chopped strand mat, high strength fiberglass woven roving and high quality unsaturated polyester resin.
INQUIRE NOWDetails:
FRP sheet is made of high strength fiberglass chopped strand mat, high strength fiberglass woven roving and high quality unsaturated polyester resin. The gel coat on surface is food grade and FDA approved. FRP sheet is mainly used for inner and outer surfaces of FRP composite panels or roofs of dry cargo truck bodies.
Thickness: 1.0mm-3.0mm
Max Width: 3000mm

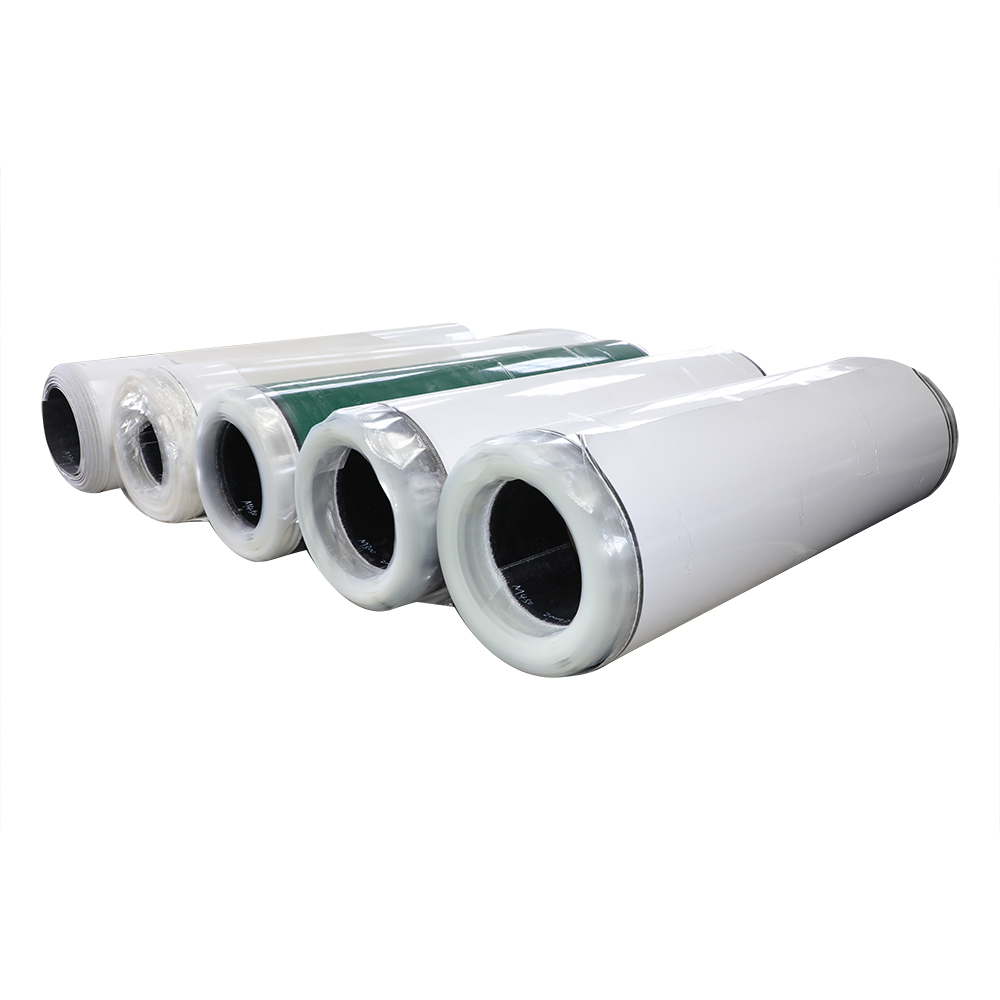

Length: 80-100 meters per roll or as required
Color: RAL system or as customer required
Advantages:
1. High surface finish & High UV resistance
2. Anti-aging & Anti-corrosive
3. Low coefficient of thermal expansion
4. Excellent water resistance
5. Easy to clean & Easy to repair
6. Long service time
7. High strength & Light weight
Main Performance Parameter and Specifications:
No | Item | Data |
1 | Tensile strength | ≥85 Mpa |
2 | Tensile modulus | ≥5000 Mpa |
3 | Flexural strength | ≥150 Mpa |
4 | Flexural modulus | ≥4000 Mpa |
5 | Barcol hardness | ≥40 |
|
|
|
No | Thickness (mm) | Weight (kg/sqm) |
1 | 1.5 | 2.5 |
2 | 2.5 | 4.5 |
3 | 3.0 | 5.0 |
