Details:

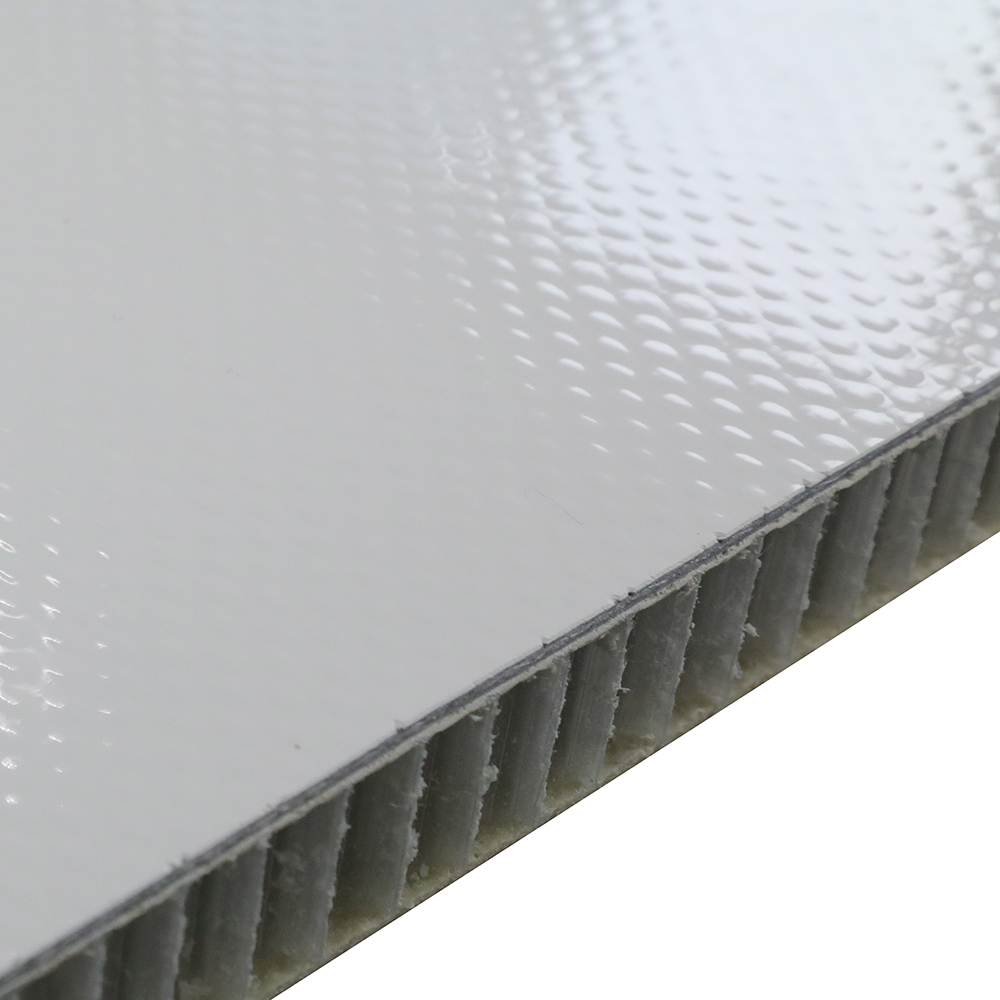

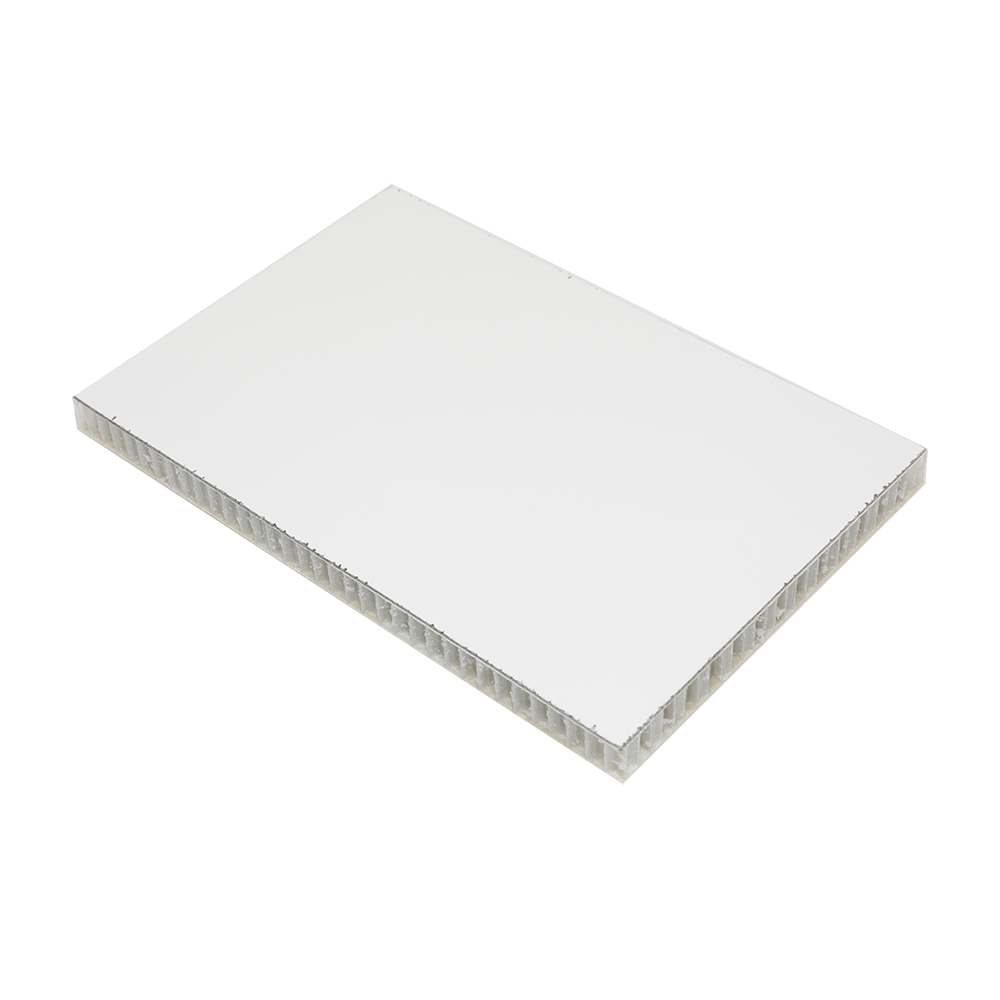

FRP PP honeycomb composite panel is essentially a sandwich panel, FRP sheet for the both sides and polypropylene plastic honeycomb for the core, bonded by vacuum high pressure. The gel coat on surface is food-grade and FDA approved. Customized high-strength aluminum profiles and other structure components can be provided for easy and fast assembly.

Thickness: 15mm / 18mm / 21mm

Max size: 16500mm long and 3000mm wide

Color: RAL system or as customer required

Advantages:

1. High surface finish & High UV resistance

2. Anti-aging & Anti-corrosive

3. Low coefficient of thermal expansion

4. Excellent water resistance

5. Easy to clean & Easy to repair

6. Long service time

7. High strength & Light weight

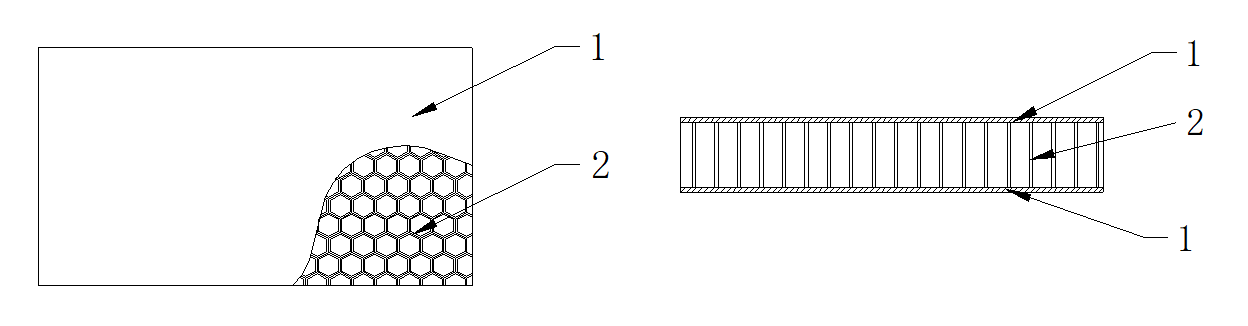

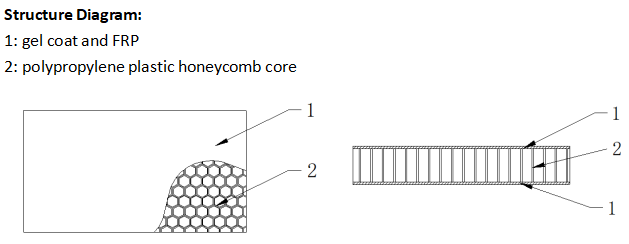

Structure Diagram:

1: gel coat and FRP

2: polypropylene plastic honeycomb core

Main Performance Parameter and Specifications:
