FRP Plywood Sandwich Panels
FRP plywood composite panel is essentially a sandwich panel, FRP sheet for the both sides and plywood for the core, then bond them together by vacuum high pressure.
INQUIRE NOWDetails:
FRP plywood composite panel is essentially a sandwich panel, FRP sheet for the both sides and plywood for the core, then bond them together by vacuum high pressure. The gel coat on surface is food-grade and FDA approved. Customized high-strength aluminum profiles and other structure components can be provided for easy and fast assembly.
Thickness: 15mm / 18mm / 21mm
Max size: 16500mm long and 3000mm wide
Color: RAL system or as customer required
Advantages:
1. High surface finish & High UV resistance
2. Anti-aging & Anti-corrosive
3. Low coefficient of thermal expansion
4. Excellent water resistance
5. Easy to clean & Easy to repair
6. Long service time
7. High strength & Light weight

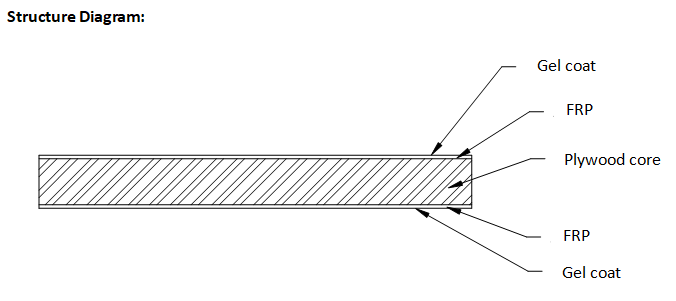

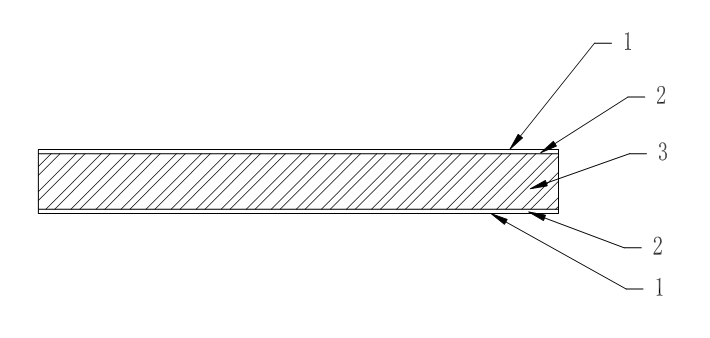

Structure Diagram:
1. gel coat
2. FRP
3. plywood core
Main Performance Parameter and Specifications:
No | Item | Data | |
1 | Static strength | Along wood grain | ≥60 Mpa |
|
| Cross wood grain | ≥50 Mpa |
2 | Elastic modulus | Along wood grain | ≥5000 Mpa |
|
| Cross wood grain | ≥4800 Mpa |
3 | Barcol hardness | ≥40 | |
4 | Edgewise compressive strength | ≥30 Mpa | |
5 | Flat tension strength | ≥0.8 Mpa | |
|
|
| |
No | Thickness (mm) | Weight (kg/sqm) | |
1 | 15 | 12 | |
2 | 18 | 14 | |
3 | 21 | 16 | |
