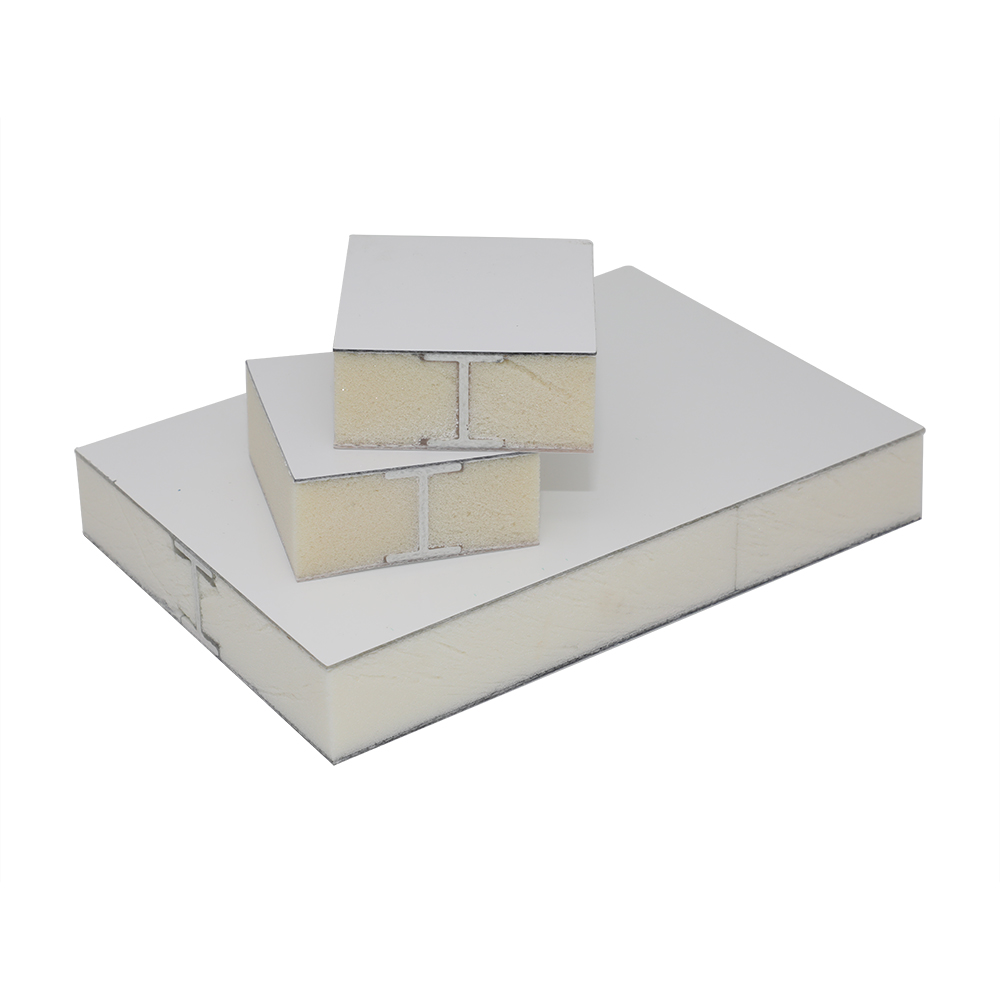

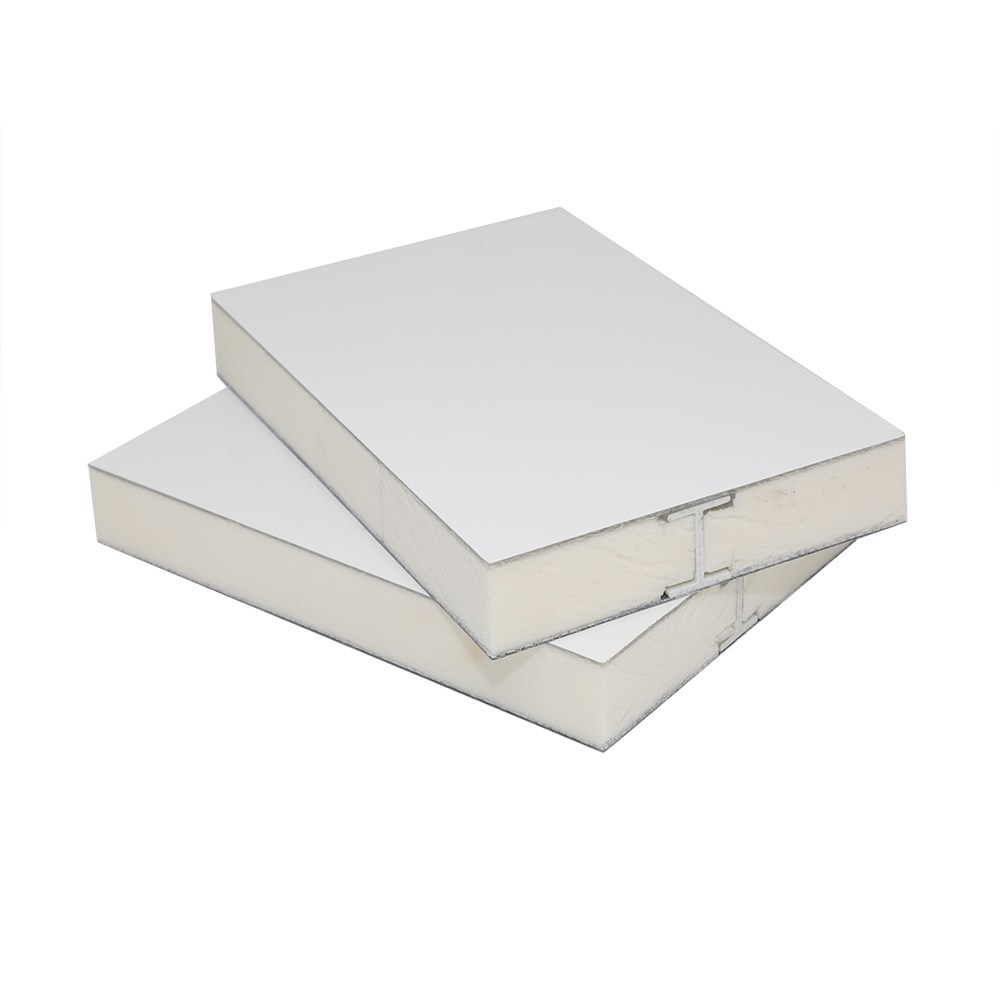

FRP PU Foam Composite Panel
FRP PU foam composite panel is essentially a sandwich panel, FRP sheet for the both sides and polyurethane foam for the core, bonded by vacuum high pressure.
INQUIRE NOWDetails:
FRP PU foam composite panel is essentially a sandwich panel, FRP sheet for the both sides and polyurethane foam for the core, bonded by vacuum high pressure. The gel coat on surface is food-grade and FDA approved. Customized high-strength aluminum profiles and other structure components can be provided for easy and fast assembly.
Thickness: 30mm/45mm/70mm/85mm/105mm/130mm
Max size: 16500mm long and 3000mm wide
Color: RAL system or as customer required
Advantages:
1. High surface finish & High UV resistance
2. Anti-aging & Anti-corrosive
3. Low coefficient of thermal expansion
4. Excellent water resistance
5. Easy to clean & Easy to repair
6. Long service time
7. High strength & Light weight

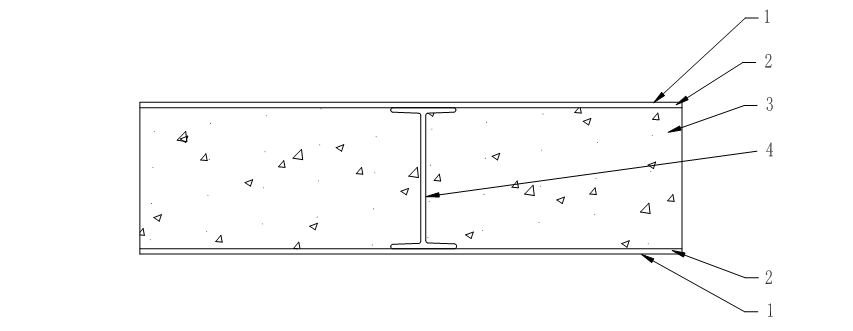

Structure Diagram:
1: gel coat
2: FRP
3: PU (Polyurethane) foam core
4: FRP H beam
Main Performance Parameter and Specifications:
No | Item | Data |
1 | Thermal conductivity | ≤0.025 w/m.K |
2 | Barcol hardness | ≥40 |
3 | Flat compressive strength | ≥0.18 Mpa |
4 | Edgewise compressive strength | ≥2.0 Mpa |
5 | Flat Tensile strength | ≥0.85 Mpa |
|
|
|
No | Thickness (mm) | Weight (kg/sqm) |
1 | 30 | 10.5 |
2 | 45 | 11.0 |
3 | 70 | 12.5 |
4 | 85 | 13.0 |
5 | 105 | 13.5 |
6 | 130 | 15.0 |
