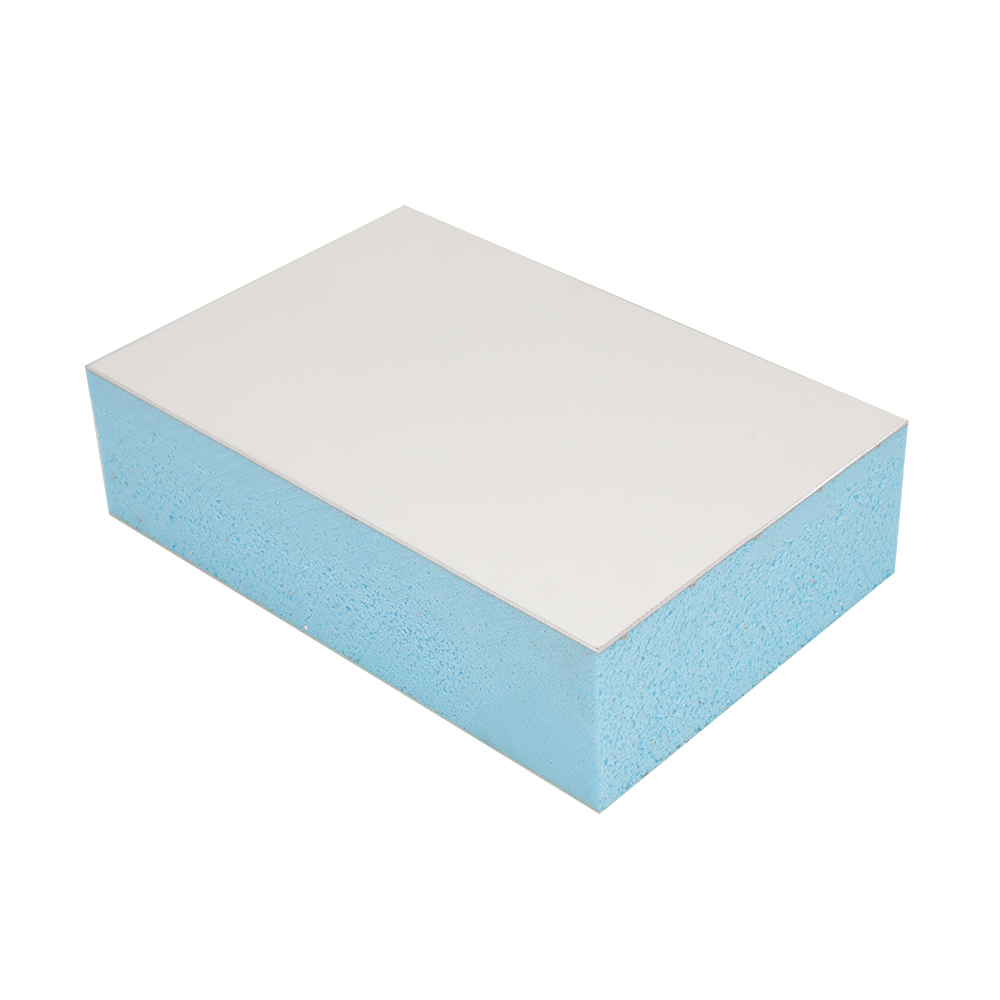

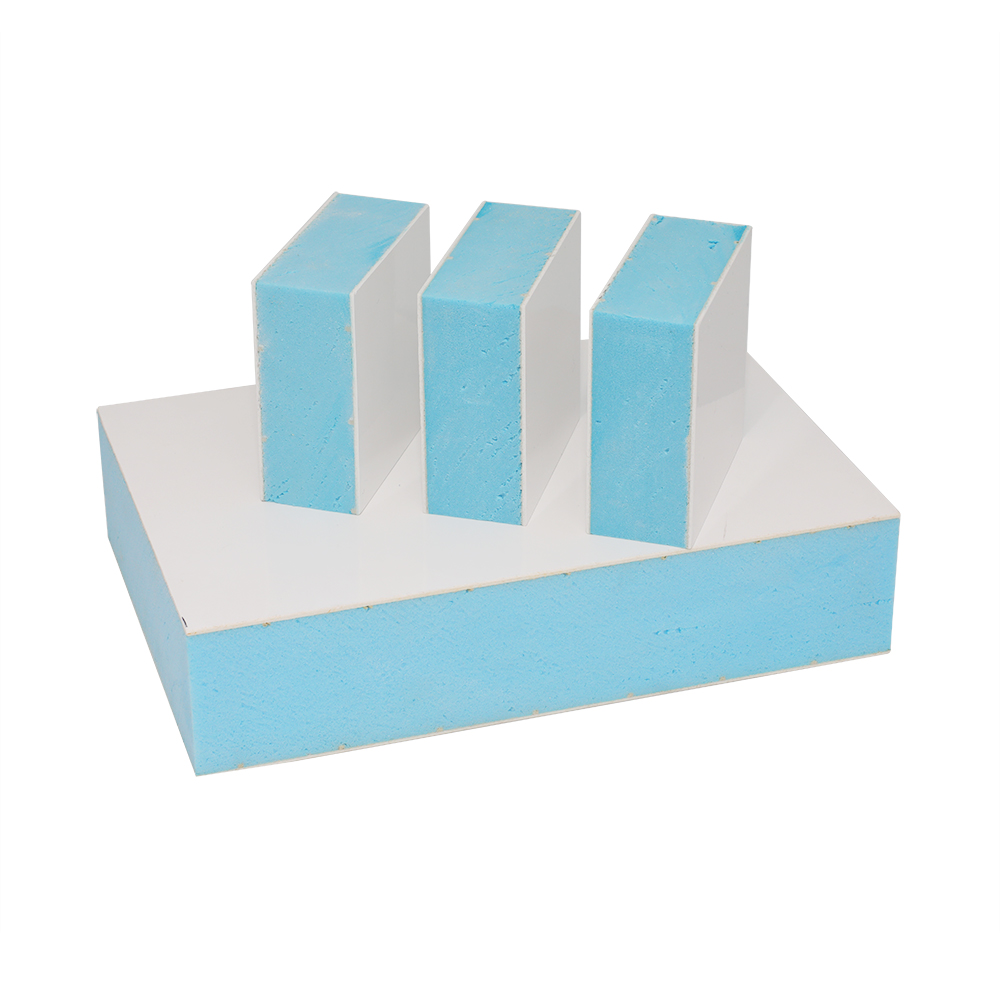

FRP XPS Foam Composite Panel
FRP XPS foam composite panel is essentially a sandwich panel, FRP sheet for the both sides and extruded polystyrene foam for the core, bonded by vacuum high pressure.
INQUIRE NOWDetails:
FRP XPS foam composite panel is essentially a sandwich panel, FRP sheet for the both sides and extruded polystyrene foam for the core, bonded by vacuum high pressure. The gel coat on surface is food-grade and FDA approved. Customized high-strength aluminum profiles and other structure components can be provided for easy and fast assembly.
Thickness: 45mm/70mm/85mm
Max size: 16500mm long and 2900mm wide
Color: RAL system or as customer required
Advantages:
1. High surface finish & High UV resistance
2. Anti-aging & Anti-corrosive
3. Low coefficient of thermal expansion
4. Excellent water resistance
5. Easy to clean & Easy to repair
6. Long service time
7. High strength & Light weight

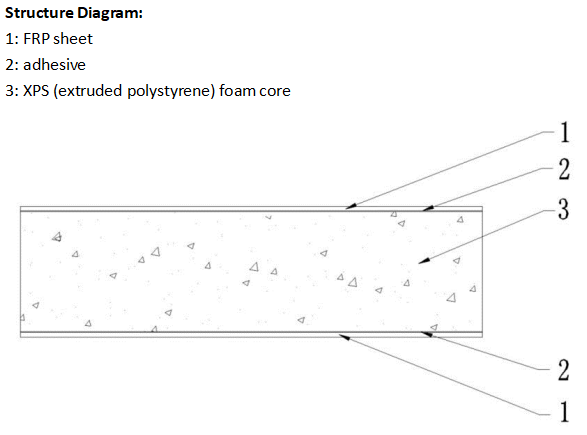

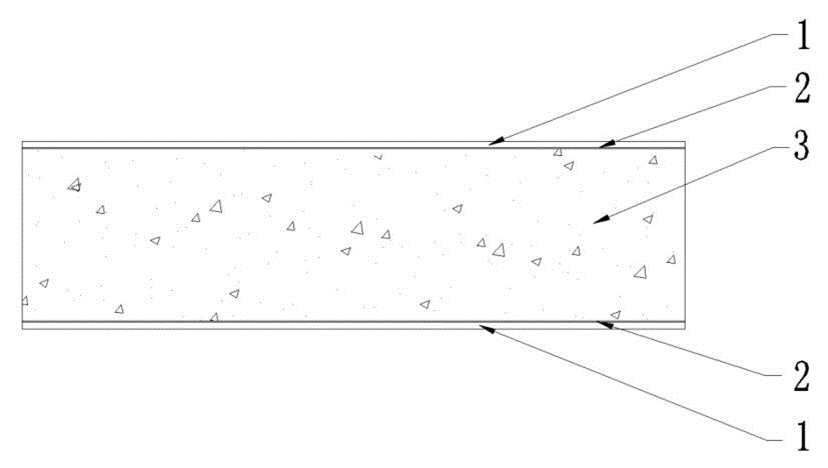

Structure Diagram:
1: FRP sheet
2: adhesive
3: XPS (extruded polystyrene) foam core
Main Performance Parameter and Specifications:
No | Item | Data |
1 | Thermal conductivity | ≤0.030 w/m.K |
2 | Barcol hardness | ≥35 |
3 | Flat compressive strength | ≥0.25 Mpa |
4 | Edgewise compressive strength | ≥2.0 Mpa |
5 | Flat Tensile strength | ≥0.70 Mpa |
|
|
|
No | Thickness (mm) | Weight (kg/sqm) |
1 | 45 | 8.0 |
2 | 70 | 8.8 |
3 | 85 | 9.3 |
